Why use Photo Etching?

The photo etching process offers a cost-effective alternative to stamping, punching,
laser and water jet cutting when machining precision components from thin gauge metals
- up to 1.5mm thick - such as   stainless steels, aluminum, copper, brass and hard to
machine metals such as titanium.

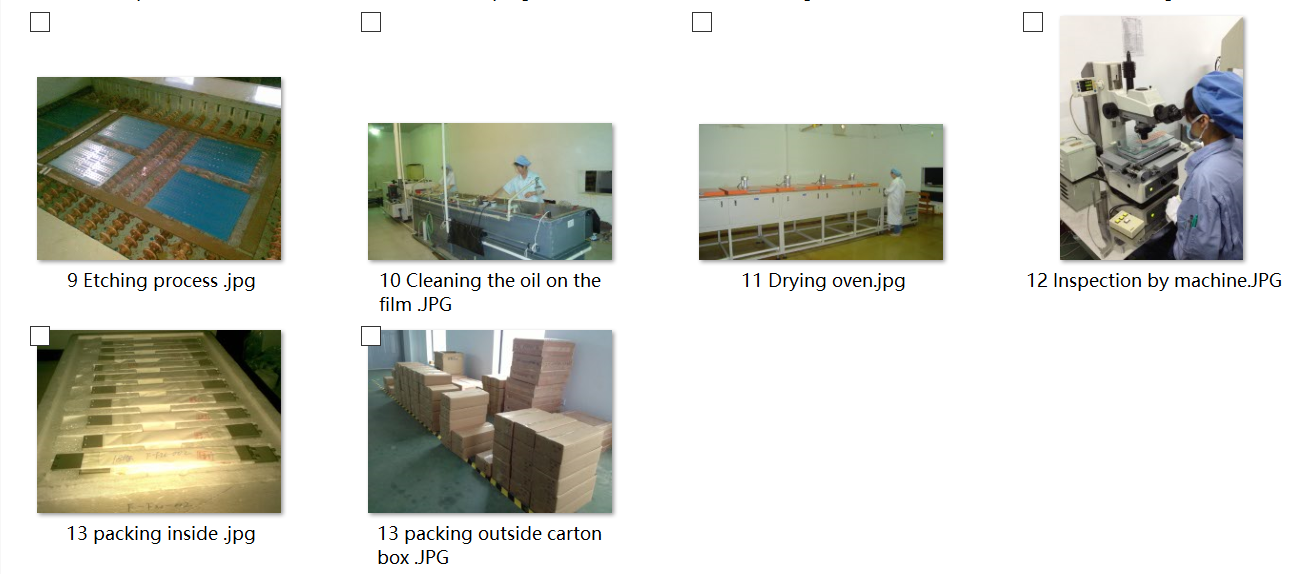

Etching process

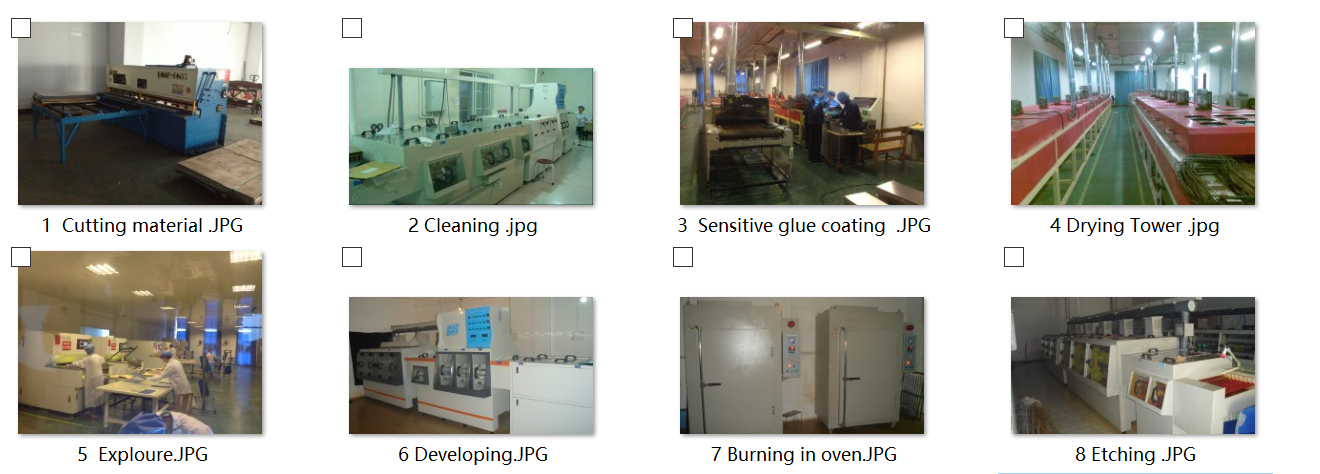

                                   Etching machines and  process                                                  ​
 ODM Project Services

The product material we can process includes: Stainless steel, copper, silicon steel plate, aluminum, nickel, magnetic material and so on.

Our products can be made without connection spots. They are burr-free and ultra even and don’t have etching spots. The slight defect can be controlled in less 0.1 square millimeter/square decimeters.

Product thickness can be achieved between 0.03 to 1.5mm.

Product size can be achieved between 1* 1mm to 300* 500mm.

Smallest open hole is ? 0.1mm.

Smallest line width is 0.025mm.

Product precision is ± 0.01mm (common difference). It’s generally 20% of material thickness.

Product quantity we can provide 4000 square meters per month.

We also provide imported stainless steel thin belts with many kinds of models such as 301,304,430.

The thickness is from 0.03 to 0.5mm.

Main use: Etching, laser cutting, precise ramming and so on.

We hope we can cooperate happily!


 Benefits
 Burr free finish
 Low cost tooling
 Prototypes – fast turnaround to meet your needs
 High volume capabilities
 Tight thickness tolerances
 Etched thickness identification
 Low cost thickness reduction for specific thicknesses

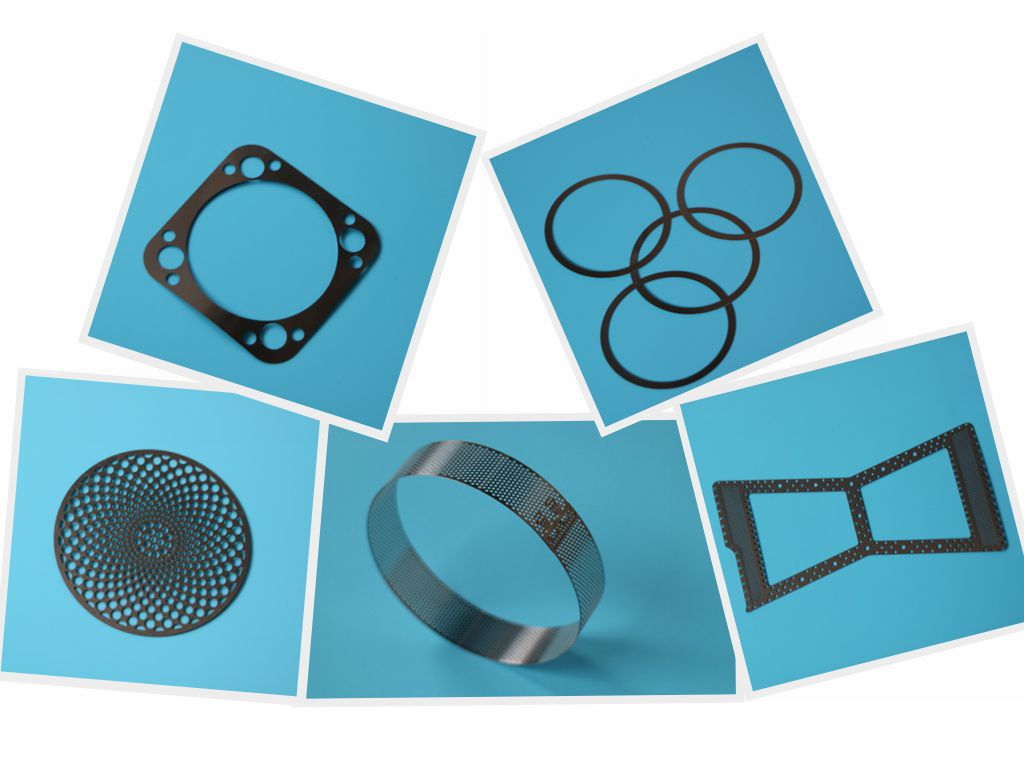

   PRODUCTS

   Contacts & Connectors

   RFI Shelding

   Encoder Discs and Actuators

   Filters, Meshes, Screens and Grids

   Formed Components

   Gaskets & Seals

   CNC parts


  SERVICES:

   Chemical Etching
   Forming and Stamping
   Plating
   Laser Cutting
   Metal Stamping
   CNC
